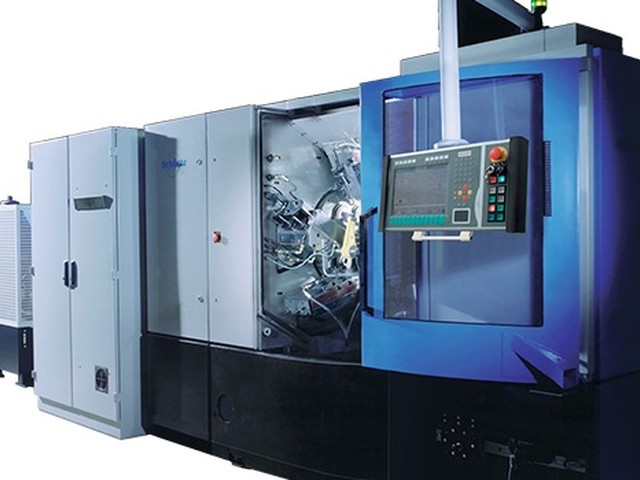

This machine is a flexible and accurate combination of a cam-operated machine and modern CNC [...]
The power of Hydrostatic drives gives the S51PC its versatility to run wide form tools or generate complex single point turning contours in any of its 6 cross or end slide positions. This drive technology works in tandem with the extensive range of attachments for the machine including but not limited to polygon turning, eccentric
Quick Specs Download PDF |
---|
Bar Stock Diameter | Ø 51 mm |
Part Length | 140 mm |
Spindle Speed - (RPM) | 3,000 max |
Number of spindles | 6 |
Type machine | CNC |
Number of axes available | 39 |
Back work tools | up to 3 |
Index idle time | 1.5 sec |
