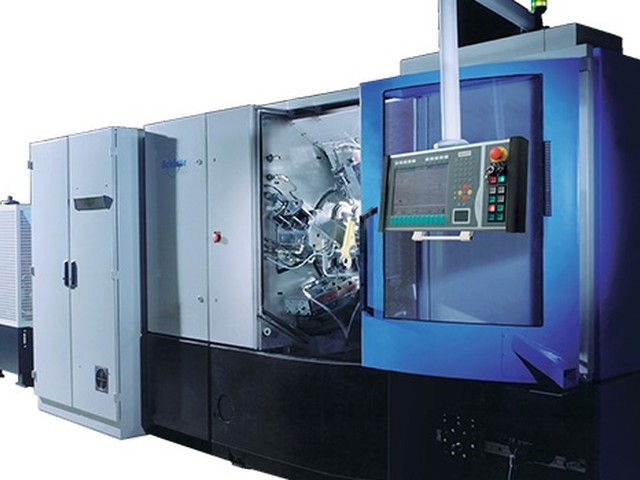

The S36PC series combines the well-known performance of a Schütte cam-operated machine with the flexibility and precision of modern CNC technology.
The S36PC comes with 6 main spindles with ø 36 mm round bar capacity.
The power of Hydrostatic drives gives the S36PC its versatility to run wide form tools or generate complex single point turning contours in any of its 6 cross or end slide positions. This drive technology works in tandem with the extensive range of attachments for the machine including but not limited to polygon turning, eccentric milling / drilling, C and Y axis machining, and the ability to independently control the spindle speed in any position.
Quick Specs
| Bar Stock Diameter | Ø 36 mm |
|---|---|
| Part Length | 115 mm |
| Spindle Speed - (RPM) | 4,000 max |
| Number of spindles | 6 |
| Type machine | CNC |
| Number of axes available | 39 |
| Back work tools | up to 3 |
| Index idle time | 0.5 sec |
