Based on the SCX concept which supports flexible machine conversion, the different operating modes—6-spindle, double-4, and 8-spindle -- of the ACX can also be selected at any time. A mechanical conversion is not required.

The 40 mm ACX machines are designed for complete machining, i.e. the front and rear side of the workpiece are completed in a single cycle. Key is the simultaneously active eight main spindles and up to two opposed spindles. All spindles are equipped with liquid-cooled direct drives, which permit freely selectable speeds independently of one another. With a torque of 85 Nm, they have particularly high dynamics and traction.

Request Info
Quick Specs Download PDF

Workpiece range
Clamping diameter, max. mm 40
Material feed, max. mm 125
Main spindles
Rated torque Nm 31
Torque, max. Nm 76
Speed, max. rpm 5500
Machining units, cross (positions I to VIII)
X-axis path mm 110
X-axis speed, max. m/min 30
Z-axis path mm 150
Z-axis speed, max. m/min 30
Y-axis path mm ± 50
Tool turret, no. of positions up to   6

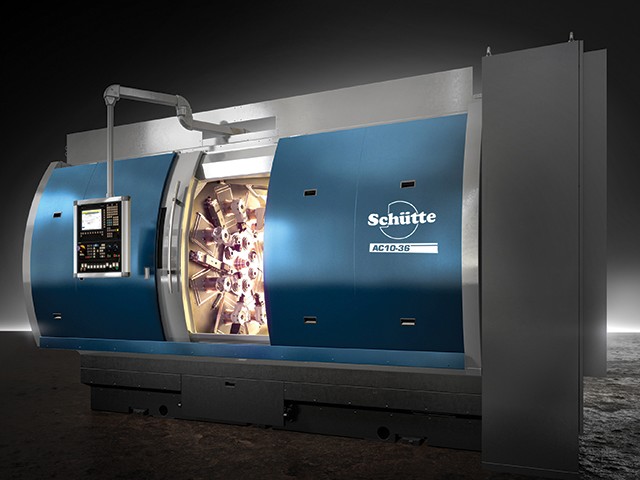

Photo of AC10-36
