Tried and tested CAM technology with available CNC options for cross and back work slides.

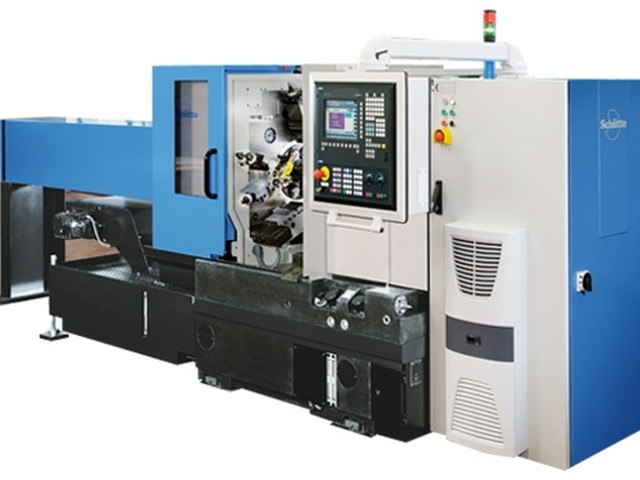

The SG18 features 6 main spindles with capacity up to ø 18 mm round stock utilizing a wide array of attachments for small part processing.
The SG18 utilizes 6 main spindles for front side machining along with an optional pick off spindle for back work. The pick off spindle can be tailored for complex machining by employing a variable RPM spindle control and 2-axis CNC turning control for up to 3 tools, or configured to utilize a simple mechanical actuation to perform quick back deburr operations.
Quick Specs
| Bar Stock Diameter | Ø 46 mm |
|---|---|
| Chucking Stock Diameter | Ø 130 mm |
| Part Length | 125 mm |
| Spindle Speed - Front (RPM - Fully independent) | 5,000 max |
| Spindle Speed - Back (RPM - Fully independent) | 7,000 max |
| Number of spindles | 9 |
| Type machine | CNC |
| Number of axes available | 63 |
| Index idle time | 1.6 sec |
